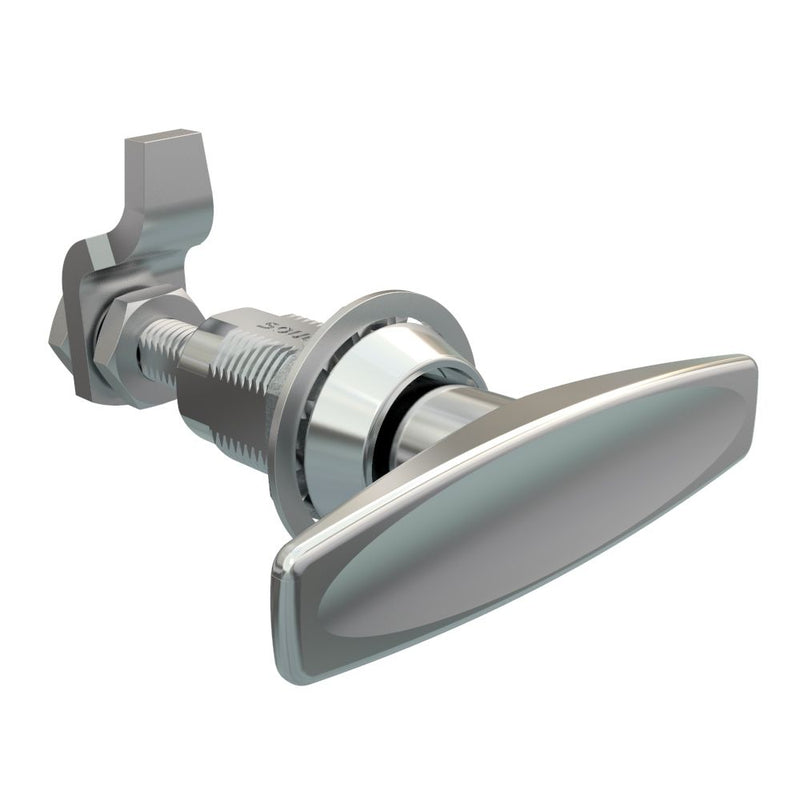

SouthcoE3-11-21VISE ACTION® Compression Latch, Large Size, T-Handle, Zinc Alloy, Chrome Plated, Bright

Access Restriction No RestrictionCam Attached KhôngColor/Appearance BrightCombine 25-68.3 mm Grip
Mã nhà sản xuất
E3-11-21
Thương hiệu
Liên hệ
📩 Liên hệ để có giá tốt: [email protected]
SOUTHCO E3-11-21 Southco’s VISE ACTION® Compression latches provide mechanical advantage, ensuring tight, robust vibration resistant door closure to seal out water and dust in the most strenuous applications. The smooth operation of the VISE ACTION® design aligns the cam behind the frame, then draws it straight up tight to prevent scraping against the frame, with a single continuous half-turn motion. Its compression action provides consistent 6.4 mm (.25”) pull-up for environmental sealing in gasketed applications, and helps reduce or eliminate noise and rattles caused by vibration. Over-center latching resists accidental opening due to shock or vibration.

_THÔNG SỐ KỸ THUẬT:

Part Number E3-11-21
Manufacturer Southco
Finish Chrome Plated
Color/Appearance Bright
Material Zinc Alloy
Grip Type Adjustable
Mounting Style Single Hole Mount
Head Style T-Handle
Cam Attached No
Rotation (°) Type A - Turn Clockwise to Latch
Grip - Maximum (mm) (in) 68.3 mm
Grip - Minimum (mm) (in) 25.4 mm
Max Outer Panel Thickness (millimeter) (inch) 18 mm
Min Outer Panel Thickness (millimeter) (inch) 1
Size Series 19.1mm
Compliance Specification UL FTTA2 / FTTA8 Type 1
Access Restriction No Restriction
Combine 25-68.3 mm Grip
