STARTECHNOTECONS011 Port VGA KVM Switch

Audio Connection Type No AudioKeyboard/Mouse Connection Type USBMaximum Resolution 1920 x 1200Number of Displays Supported 1
Mã nhà sản xuất
NOTECONS01
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1238065
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

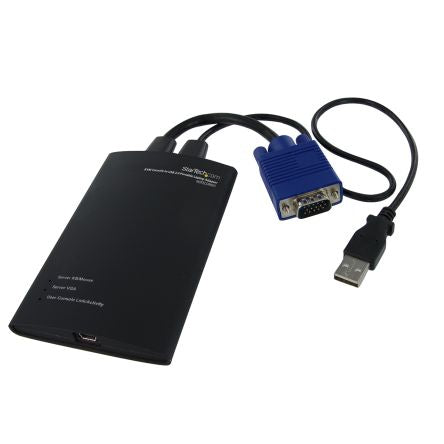

NOTECONS01 Crash Cart Adapter

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine

administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

  • Very small footprint with integrated KVM cables
  • Self-powered – draws its power from the server USB connections
  • Multi-platform support USB and PS/2 to the server or KVM (PS/2 for Keyboard Only)
  • LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link
  • Manual video adjustments to control the picture position, sharpness and image noise for optimal performance settings
  • Snapshot feature allows you to capture screen shots of your server, error messages, and activity
  • Pre-loaded special key commands
  • Keyboard emulation support for USB, PS/2 and SUN systems
  • Auto image centring adjustment for 4x3 images on a wide screen display
  • Automatic video scaling when resizing the viewing pane from the console PC (laptop) for immediate, automatic compatibility
  • Manual video override adjustments allows it to work with legacy and industrial devices where other portable consoles do not
  • True USB mouse synchronization ensures accurate navigation of the connected server
  • Ultra-high resolution support up to 1920 x 1200 @ 60Hz – The highest resolution portable console available
  • No power adapter needed - Draws power from the server side USB connection saving your laptop's battery life, and avoiding the hassle of finding 110V outlets in the server room or remote locations
  • Small, ruggedized casing (similar to the size of a cellphone) is easily stored and transported with no server-side software requirement, you will be up and running in seconds

Applications

  • Eliminates the need for huge, bulky crash carts in the server room or distributed networks
  • Cost effective solution for areas where dedicated rack mounted LCD Consoles are too pricey or cumbersome to install
  • Headless Server maintenance
  • Mobile server repair
  • ATM and VLT maintenance and repair

What's in the package?

  • USB PS/2 KVM Console Adapter
  • USB Cable
  • USB to PS/2 Adapter
  • USB Software Key
THÔNG SỐ KỸ THUẬT
Number of Ports 1
Number of Video Outputs 1
Number of Displays Supported 1
Video Connection Type VGA
Keyboard/Mouse Connection Type USB
Audio Connection Type No Audio
Dimensions 74 x 115 x 15mm
Maximum Resolution 1920 x 1200
Depth 115mm
Height 15mm
Width 74mm
