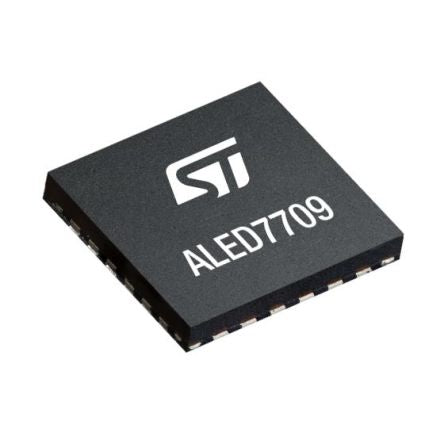

STMICROELECTRONICSALED7709ATRALED7709ATR LED Driver IC, 4.5 → 42 V 200mA 24-Pin QFN
AC or DC Input Voltage dcDimming Operation 1 → 10 VInput Voltage 4.5 → 42 VNumber of Pins 24
Liên hệ
The STMicroelectronics automotive grade LED drivers combining a boost or SEPIC controller and four low-side constant current sinkers, designed to drive strings of high brightness LEDs. The switching converter section provides the supply rail for the LED strings whose value is constantly optimized for maximum efficiency. The boost or SEPIC controller supports the external synchronization and spread spectrum. It can work simultaneously or exclusively in standalone mode (SAM), controlled only by PWMI signal and in bus driven mode (BDM) through an I2C serial interface.
AEC-Q100 Grade1 qualified
Supports battery cranking events down to 4 V supply
