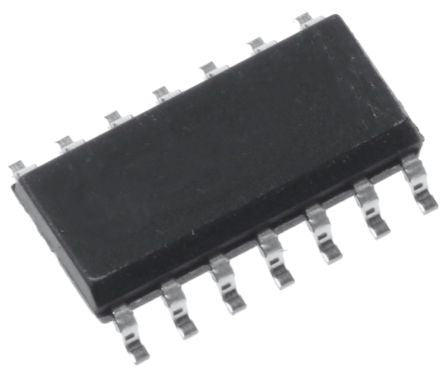

STMICROELECTRONICSHCF4013YM013TRHCF4013YM013TR

Input Type Single EndedLogic Function D TypeMaximum Operating Supply Voltage 20VMaximum Propagation Delay Time @ Maximum CL 400 ns @ 50 pF
Mã nhà sản xuất
HCF4013YM013TR
Thương hiệu
Quy cách đóng gói
50 cái (băng liên tục)
Mã kho
1892004
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The HCF4013 is a monolithic integrated circuit fabricated in metal oxide semiconductor technology available in PDIP14 and SO14 packages. The HCF4013 consists of two identical, independent data type flip-flops. Each flip-flop has independent data, set, reset, and clock inputs, and Q and Q outputs. This device can be used for shift register applications. It can also be used for counter and toggle applications by connecting Q outputs to the data input. The logic level present at the D input is transferred to the Q outputs during the positive-going transition of the clock pulse. Setting or resetting is independent of the clock and is accomplished by a high level on the set or reset line, respectively.

Set-reset capability

Static flip-flop operation - retains state indefinitely with clock level either "high" or "low"

Medium speed operation 16 MHz (typ.), clock toggle rate at 10 V

Standardized symmetrical output characteristics

Quiescent current specified up to 20 V

5 V, 10 V, and 15 V parametric ratings

Input leakage current II= 100 nA (max.) at VDD= 18 V, TA= 25 °C

100 % tested for quiescent current

ESD performance

HBM: 2 kV

MM: 200 V

CDM: 1 kV

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. HCF4013YM013TR
Logic Function D Type
Input Type Single Ended
Output Signal Type Differential
Triggering Type Positive Edge
Polarity Inverting, Non-Inverting
Mounting Type Surface Mount
Package Type SO
Pin Count 14
Set/Reset Reset, Set
Number of Elements per Chip 2
Maximum Propagation Delay Time @ Maximum CL 400 ns @ 50 pF
Maximum Operating Supply Voltage 20V
Dimensions 8.75 x 4 x 1.65mm
Minimum Operating Supply Voltage 3V
Propagation Delay Test Condition 50pF
Length 8.75mm
Maximum Operating Temperature +125°C
Width 4mm
Height 1.65mm
Minimum Operating Temperature -40°C

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
