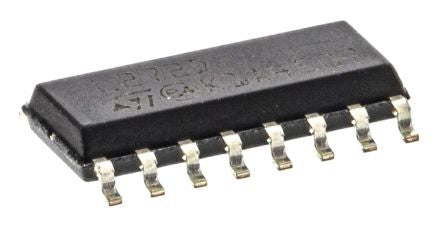

STMICROELECTRONICSL272DL272D STMicroelectronics, High Current, Op Amp, 350kHz, 5 → 24 V, 16-Pin SOIC

Amplifier Type High CurrentKiểu lắp Surface MountNumber of Channels per Chip 2Pin Count 16
Mã nhà sản xuất
L272D
Thương hiệu
Quy cách đóng gói
25 cái (băng liên tục)
Mã kho
6867587
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

L272, Dual Power Operational Amplifiers

The L272 is a power operational amplifier with high gain and high output power capability. Applications include servo amplifiers and power supplies.

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. L272D
Amplifier Type High Current
Mounting Type Surface Mount
Package Type SOIC
Power Supply Type Dual, Single
Number of Channels per Chip 2
Pin Count 16
Typical Single Supply Voltage 5 → 24 V
Typical Gain Bandwidth Product 350 kHz
Typical Dual Supply Voltage ±12 V, ±3 V, ±5 V, ±9 V
Typical Slew Rate 1V/µs
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Typical Voltage Gain 70 dB
Rail to Rail No
Height 1.65mm
Length 10mm
Width 4mm
Dimensions 10 x 4 x 1.65mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
