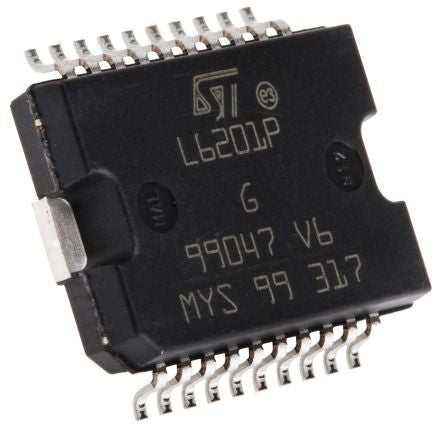

STMICROELECTRONICSL6201PSL6201PS, Brushed Motor Driver IC, 48 V 4A 20-Pin, PowerSO

Maximum Collector Emitter Voltage 48VMaximum IGBT Collector Current 4AMaximum Operating Supply Voltage 48VMinimum Operating Supply Voltage 12V
Mã nhà sản xuất
L6201PS
Thương hiệu
Quy cách đóng gói
Ống 31 cái
Mã kho
1686793
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Motor Control Power Drivers, STMicroelectronics

The range of power drivers by STMicroelectronics are designed to drive a motor or a complex load through the logic commands at its input. They can be used with microcontrollers, DSPs or FPGAs in a motor or motion control system. The power drivers come in Dual Full Bridge, Full Bridge and 3 phase.

Motor Controllers & Drivers, STMicroelectronics

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. L6201PS
Motor Type Brushed DC
Output Configuration Full Bridge
Maximum IGBT Collector Current 4A
Maximum Collector Emitter Voltage 48V
Mounting Type Surface Mount
Package Type PowerSO
Maximum Operating Supply Voltage 48V
Pin Count 20
Minimum Operating Supply Voltage 12V
Width 11.1mm
Minimum Operating Temperature -40°C
Dimensions 16 x 11.1 x 3.3mm
Maximum Operating Temperature +150°C
Length 16mm
Height 3.3mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
