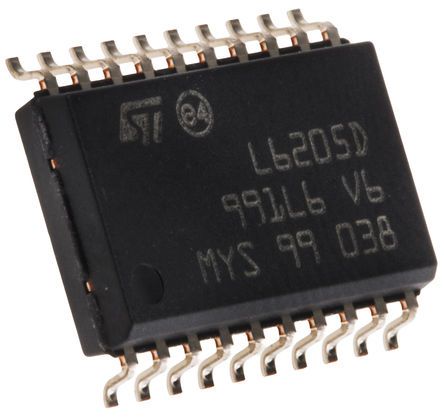

STMICROELECTRONICSL6205DL6205D, Brushed Motor Driver IC, 52 V 2.8A 20-Pin, SOIC

Maximum Collector Emitter Voltage 52VMaximum IGBT Collector Current 2.8AMaximum Operating Supply Voltage 52VMinimum Operating Supply Voltage 8V
Mã nhà sản xuất
L6205D
Thương hiệu
Quy cách đóng gói
Ống 40 cái
Mã kho
9206207
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Motor Control Power Drivers, STMicroelectronics

The range of power drivers by STMicroelectronics are designed to drive a motor or a complex load through the logic commands at its input. They can be used with microcontrollers, DSPs or FPGAs in a motor or motion control system. The power drivers come in Dual Full Bridge, Full Bridge and 3 phase.

Motor Controllers & Drivers, STMicroelectronics

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. L6205D
Motor Type Brushed DC
Output Configuration Dual Full Bridge
Maximum IGBT Collector Current 2.8A
Maximum Collector Emitter Voltage 52V
Mounting Type Surface Mount
Package Type SOIC
Maximum Operating Supply Voltage 52V
Pin Count 20
Minimum Operating Supply Voltage 8V
Typical Switching Frequency 100 kHz
Width 7.6mm
Height 2.35mm
Maximum Operating Temperature +150°C
Length 13mm
Minimum Operating Temperature -40°C
Dimensions 13 x 7.6 x 2.35mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
