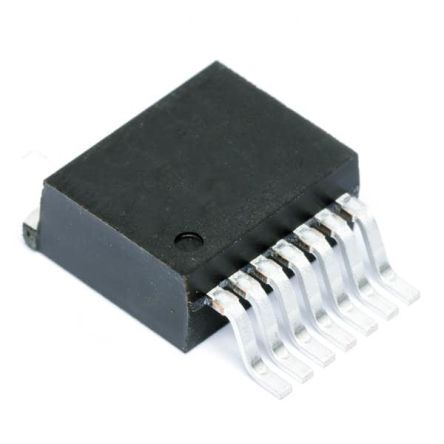

STMICROELECTRONICSSCTH35N65G2V-7AGDual N-Channel MOSFET, 45 A, 650 V, 7-Pin H2PAK-7 STMicroelectronics SCTH35N65G2V-7AG

Channel Mode EnhancementChannel Type NMaximum Continuous Drain Current 45AMaximum Gate Threshold Voltage 5V
Mã nhà sản xuất
SCTH35N65G2V-7AG
Thương hiệu
Quy cách đóng gói
10 cái (băng liên tục)
Mã kho
2249999
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The STMicroelectronics silicon carbide Power MOSFET device has been developed using ST's advanced and innovative 2nd generation SiC MOSFET technology. The device features remarkably low on-resistance per unit area and very good switching performance. The variation of switching loss is almost independent of junction temperature.

Very fast and robust intrinsic body diode

Extremely low gate charge and input capacitance

Source sensing pin for increased efficiency

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. SCTH35N65G2V-7AG
Channel Type N
Maximum Continuous Drain Current 45A
Maximum Drain Source Voltage 650V
Package Type H2PAK-7
Mounting Type Surface Mount
Pin Count 7
Maximum Drain Source Resistance 0.067Ω
Channel Mode Enhancement
Maximum Gate Threshold Voltage 5V
Transistor Material Si
Number of Elements per Chip 2

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
