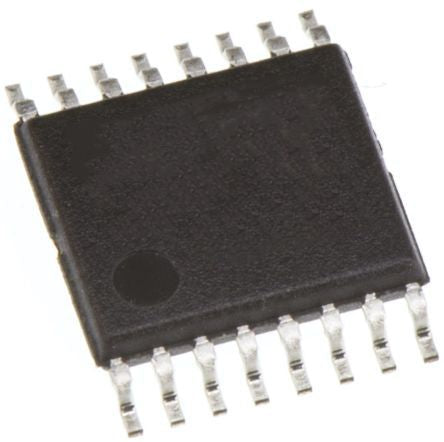

STMICROELECTRONICSST3232ECTRST3232ECTR, Buffer & Converter Combi

Logic Function DriverMaximum High Level Output Current -1mAMaximum Low Level Output Current 1.6mAMaximum Operating Supply Voltage 6V
Mã nhà sản xuất
ST3232ECTR
Thương hiệu
Quy cách đóng gói
Gói 10 cái
Mã kho
1962007
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The ST3232E is a 3 V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements, high data-rate capabilities and enhanced electrostatic discharge (ESD)protection. The ST3232E has a proprietary low-dropout transmitter output stage providing true RS-232 performance from 3 to 5 V supplies with a dual charge pump. The charge pump requires only four small 0.1 μF standard external capacitors for operations from 3 V supply. The ST3232E has two receivers and two drivers. The device is guaranteed to run at data rates of 250 kbps.

ESD protection for RS-232 I/O pins

300 μA supply current

250 kbps minimum guaranteed data rate

6 V/μs minimum guaranteed slew rate

Available in SO-16 and TSSOP16

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. ST3232ECTR
Logic Function Driver
Number of Channels 1
Output Type CMOS, TTL
Mounting Type Surface Mount
Package Type TSSOP
Pin Count 16
Maximum High Level Output Current -1mA
Maximum Low Level Output Current 1.6mA
Maximum Operating Supply Voltage 6V
Dimensions 5.1 x 4.5 x 1.05mm
Minimum Operating Supply Voltage -0.3V
Height 1.05mm
Width 4.5mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Propagation Delay Test Condition 150pF
Length 5.1mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
