STMICROELECTRONICSSTEVAL-ESC002V1STEVAL-ESC002V1, Ref Design STSPIN32F0A

Dùng cho Electronic Speed ControllerKit Classification Evaluation Board
Mã nhà sản xuất
STEVAL-ESC002V1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1962545
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

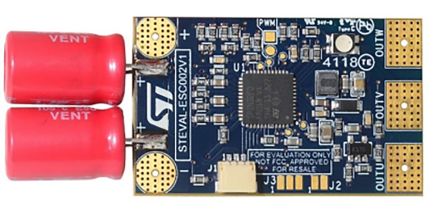

The STEVAL-ESC002V1 board is a very compact and ready to use Electronic Speed

Controller (ESC) reference design. The board can easily fit any small and light drone

for racing or surveying purposes, and is also highly suitable for any three-phase

BLDC application requiring a small form factor, minimal BoM, and high speed rotation

performance.

Together with the companion firmware package (STSW-ESC002V1), it represents a

solution for sensorless voltage mode six-step driving.

The heart of the board is the STSPIN32F0A advanced 3-phase brushless motor

controller that embeds an STM32 Cortex®-M0® microcontroller, voltage regulators,

signal conditioning circuitry and gate drivers in a small 7x7 mm² QFN package. The

power stage is based on the 2.8 mΩ low resistance, high speed STL140N6F7

MOSFETs, designed with STripFET™ F7 technology and able to deliver up to 20 A of

continuous current.

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STEVAL-ESC002V1
For Use With Electronic Speed Controller
Kit Classification Evaluation Board
Kit Name Electronic Speed Controller Reference Design Based on STSPIN32F0A

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.

Compare products

Select 2 or 3 items to compare

Select first item to compare

Select second item to compare

Select third item to compare

Compare
📄 Datasheet STMICROELECTRONICS STEVAL-ESC002V1 (PDF)
