STMICROELECTRONICSSTEVAL-IFP034V1STEVAL-IFP034V1,Power Management Dev Kit

Featured Device IPS161HDùng cho Analyze the IPS161H Device FunctionalityKit Classification Evaluation BoardTên bo Evaluation Board
Mã nhà sản xuất
STEVAL-IFP034V1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1961765
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

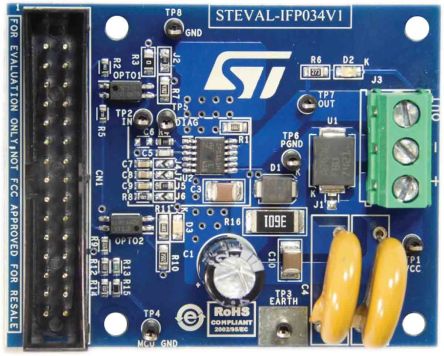

The STEVAL-IFP034V1 evaluation board is designed to analyze the IPS161H device functionality. It provides galvanic isolation between the user interface and the power interface through optical isolation implemented with optocouplers OPTO1 for forward signals to the device and OPT2 for diagnostic feedback signals.

A dedicated GUI interface helps you test IPS161H functionality. To use it, ensure the STEVAL-IFP034V1 is connected via a 30-way flat cable to a STEVAL-PCC009V2, which is connected via USB to the PC running the GUI.

Operating voltage range: 8 to 60 V

Operating current: 0.5 A max

Programmable cut-off delay time

Reverse polarity protection

Galvanic isolation on PCB

Input pins compatible with VCC rails

Green LED for channel ON/OFF status

Red LED for Common Diagnostics on:

open load in OFF state

cut-off

thermal protection

Microcontroller interface

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STEVAL-IFP034V1
For Use With Analyze the IPS161H Device Functionality
Kit Classification Evaluation Board
Featured Device IPS161H
Kit Name Evaluation Board

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
