STMICROELECTRONICSSTEVAL-ILL062V1STEVAL-ILL062V1 LED Driver for STP16CPC26
High Brightness LED Array Driver, STMicroelectronics

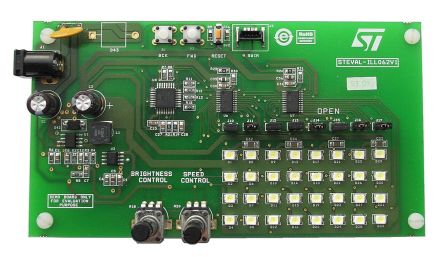

The STEVAL-ILL062V1 Evaluation Board is based on the 16-channel, constant current LED sink driver STP16CPC26 from STMicroelectronics. An 8-bit STM8S microcontroller configures and controls the LED driver (adjustable brightness/speed) through the SPI interface. The industrial-grade L7981D DC-DC converter provides the voltages and power for the board.
Demonstrates pre-configured patterns such as rolling text, wave effect, dot sequence, etc.
LED test points
Potentiometer to change brightness and speed of patterns
SWIM connector to program microcontroller
Push buttons (backward/forward) to change between modes
Power supply 6V to 24V DC
32 white LEDs
LED Drivers, Lighting ICs, STMicroelectronics
