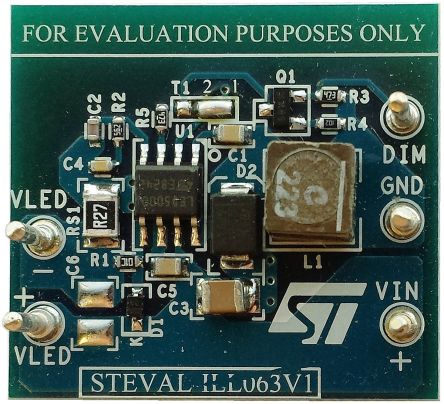

STMICROELECTRONICSSTEVAL-ILL063V1STEVAL-ILL063V1 LED Driver for LED5000

3A LED Driver (LED5000 in Floating Boost Topology), STMicroelectronics

The STEVAL-ILL063V1 is an Evaluation Board based on the LED5000, a step-down current source with dimming capability. The adjustable output current is 3A DC maximum. A sensing resistor on the feedback pin sets the regulated output current level. The board is fully protected against over-heating, over-current and output short-circuit.

5.5V to 48V operating input voltage range

850kHz fixed switching frequency

200mV typ. current sense voltage drop

Floating boost topology

PWM dimming

±3% output current accuracy over temperature

200mOhm typical RDS(ON)

Compliant with ceramic output capacitors

Inhibit for zero current consumption

Thermal shutdown

LED Drivers, Lighting ICs, STMicroelectronics
