STMICROELECTRONICSSTEVAL-ISA115V1STEVAL-ISA115V1,Power Management Dev Kit

Featured Device VIPer06XSDùng cho Power SupplyKit Classification Evaluation BoardTên bo Demonstration Board
Mã nhà sản xuất
STEVAL-ISA115V1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1961850
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

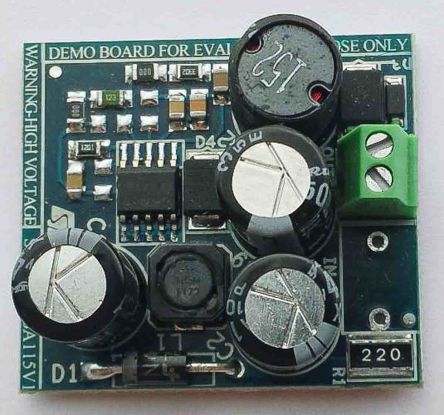

The STEVAL-ISA115V1 demonstration board is a 12 V / 0.15 A power supply set in buck topology with the VIPER06XS, a new off-line high voltage converter by STMicroelectronics. The features of the device include an 800 V avalanche rugged power section, PWM operation at 30 kHz with frequency jittering for lower EMI, current limiting with adjustable set point, onboard soft-start, a safe auto-restart after a fault condition and low standby power consumption.

Available protection features include thermal shutdown with hysteresis, delayed overload protection and open loop failure protection. All protection is auto-restart mode.

Universal input mains range:

input voltage: 90 VAC - 264 VAC

frequency: 45 Hz - 65 Hz

Single-output voltage: 12 V @ 0.15 A continuous operation

Standby mains consumption: < 50 mW @ 265 VAC

Average efficiency: > 75%

Fully protected against faults (overload, feedback disconnection and overheating)

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STEVAL-ISA115V1
Power Management Function Buck Converter
For Use With Power Supply
Kit Classification Evaluation Board
Featured Device VIPer06XS
Kit Name Demonstration Board

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
