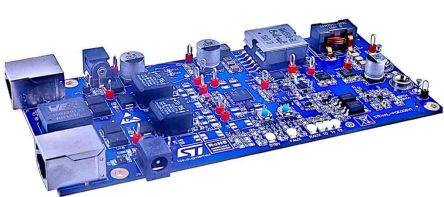

STMICROELECTRONICSSTEVAL-POE006V1STEVAL-POE006V1,Power Management Dev Kit

Featured Device PM8805Dùng cho Wireless Access PointsKit Classification Evaluation BoardTên bo Evaluation Board
Mã nhà sản xuất
STEVAL-POE006V1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1961908
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

This reference design represents a 3.3 V, 20 A converter solution ideal for various applications including wireless access points, supplied with a PoE-PD interface and a DC-DC active clamp forward converter. The PoE-PD interface is based on the PM8805 system in package device with two active bridges and a Powered Device (PD) interface. It can be used in all medium-to-high power 2P and 4P high efficiency PoE and PoE+ applications.

The DC-DC active clamp forward converter is designed around the PM8804 PWM controller, which is an integrated solution for smart and efficient 48 V converters, featuring a programmable oscillator for the switching frequency, adjustable slope compensation, dual complementary low-side drivers with programmable dead time, programmable soft start, soft turn off and a programmable current sense blanking time.

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STEVAL-POE006V1
For Use With Wireless Access Points
Kit Classification Evaluation Board
Featured Device PM8805
Kit Name Evaluation Board

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
