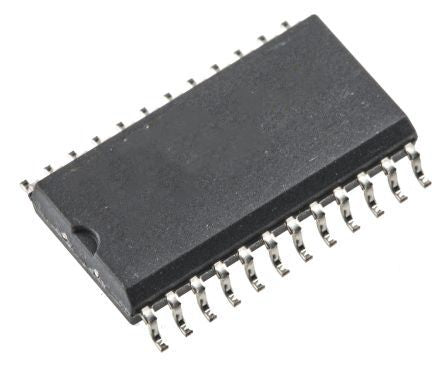

STMICROELECTRONICSSTP16CPC26MTRSTP16CPC26MTR

Kiểu màn hình LEDMaximum Supply Current (Off) 13.5 mAKiểu lắp Surface MountNumber of Pins 24
Mã nhà sản xuất
STP16CPC26MTR
Thương hiệu
Quy cách đóng gói
5 cái (băng liên tục)
Mã kho
1889369
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The STP16CPC26 is a monolithic, low voltage, 16-bit constant current LED sink driver. The device contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. In the output stage sixteen regulated current generators provide 5 mA to 90 mA constant current to drive LEDs. The current is externally adjusted through a resistor. LED brightness can be adjusted from 0% to 100% via OE pin.

The STP16CPC26 guarantees a 20 V driving capability, allowing users to connect more LEDs in series to each current source.

The high 30 MHz clock frequency makes the device suitable for high data rate transmission.

The thermal shutdown (170 °C with about 15 °C hysteresis) assures protection from overtemperature events.

The STP16CPC26 is housed in four different packages: QSOP24, SO-24, TSSOP-24 and HTSSOP-24 (with exposed pad).

16 constant current output channels

Adjustable output current through external resistor

Output current: 5 mA to 90 mA

±1% typical current accuracy bit to bit

Max clock frequency: 30 MHz

20 V current generators rated voltage

3 - 5.5 V power supply

Thermal shutdown for overtemperature protection

Applications

Video display panel LED driver

Special lighting

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STP16CPC26MTR
Package Type SO
Display Type LED
Number of Pins 24
Supply Voltage 2.7 → 5.5 V
Maximum Supply Current (Off) 13.5 mA, (On) 15mA
Minimum Operating Temperature -40°C
Mounting Type Surface Mount
Maximum Operating Temperature +150°C
Width 7.6mm
Height 2.35mm
Length 15.6mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
