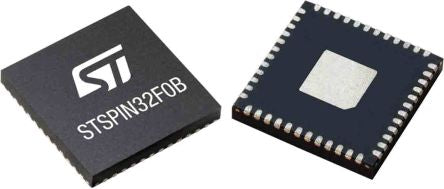

STMICROELECTRONICSSTSPIN32F0BSTSPIN32F0B, Motor Driver ICs

Configuration 3 PhaseMaximum Operating Supply Voltage 45VMaximum Output Current 70mAMaximum Supply Voltage 45V
Mã nhà sản xuất
STSPIN32F0B
Thương hiệu
Quy cách đóng gói
Gói 5 cái
Mã kho
1925072
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Extended operating voltage from 6.7 to 45 V

Three-phase gate drivers

600 mA sink/source

Integrated bootstrap diodes

Cross-conduction prevention

32-bit ARM® Cortex®-M0 core:

Up to 48 MHz clock frequency

4-kByte SRAM with HW parity

32-kByte Flash memory with option bytes used for write/readout protection

Bootloader FW available

3.3. V DC/DC buck converter regulator with overcurrent, short-circuit, and thermal protection

12 V LDO linear regulator with thermal protection

20 general-purpose I/O ports (GPIO)

5 general-purpose timers

12-bit ADC converter (up to 9 channels)

I2C, USART and SPI interfaces

One rail-to-rail operational amplifier for signal conditioning

Comparator for overcurrent protection with programmable threshold

Standby mode for low power consumption

UVLO protection on each power supply:

VM, VDD, VREG and VBOOTx

On-chip debug support via SWD

Extended temperature range: -40 to +125 °C

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STSPIN32F0B
Motor Type BLDC
Configuration 3 Phase
Output Configuration Half Bridge
Maximum Output Current 70mA
Maximum Supply Voltage 45V
Mounting Type Surface Mount
Package Type VFQFPN
Pin Count 48
Maximum Operating Supply Voltage 45V
Minimum Operating Supply Voltage 6.7V
Typical Switching Frequency 200 kHz
Minimum Operating Temperature -40°C
Dimensions 7.1 x 7.1 x 0.95mm
Width 7.1mm
Height 0.95mm
Maximum Operating Temperature +125°C
Product Width 7.1mm
Product Length 7.1mm
Length 7.1mm
Product Height 0.95mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
