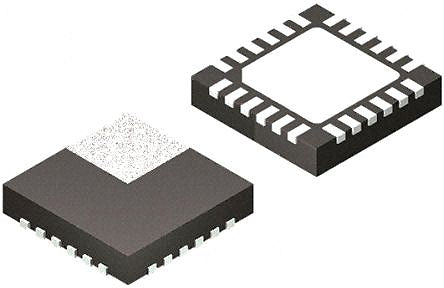

STMICROELECTRONICSSTSPIN820256 microstep integrated Motor Driver

Motor Type Stepper
Mã nhà sản xuất
STSPIN820
Thương hiệu
Quy cách đóng gói
Gói 2 cái
Mã kho
1646997
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The STSPIN820 is a stepper motor driver which integrates, in a small QFN 4 x 4 mm package, both control logic and a low RDSon power stage. The integrated controller implements a PWM current control with fixed OFF time and a microstepping resolution up to 1/256th of the step. The device can be forced into a low consumption state. The device offers a complete set of protection features including overcurrent, overtemperature and short-circuit protection

Operating voltage from 7 to 45 V

Maximum output current 1.5 Arms

RDSon HS + LS = 1 Ω typ.

Microstepping up to 1/256th of step

Current control with programmable OFF time

Current sensing based on external shunt resistor

Full protection set

Non-dissipative overcurrent protection

Short-circuit protection

Undervoltage lockout

Thermal shutdown

Standby low consumption

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. STSPIN820
Motor Type Stepper

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
