STMICROELECTRONICSX-NUCLEO-53L0A1X-NUCLEO-53L0A1, Gesture Sensor Expansion Board for VL53L0X

Featured Device VL53L0XKit Classification Expansion BoardSensor Technology Gesture Sensor
Mã nhà sản xuất
X-NUCLEO-53L0A1
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1438872
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

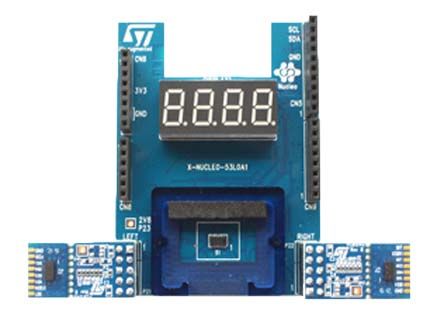

X-NUCLEO-53L0A1 VL53L0X Gesture Sensor Expansion Board

The X-NUCLEO-53L0A1 expansion board is based on the VL53L0X ranging and gesture detection module using FlightSense™ technology. This technology allows absolute distance to be measured independent of target reflectance. The VL53L0X precisely measures the time the light takes to travel to the nearest object and reflect back to the sensor (Time-of-Flight). In order to evaluate the VL53L0X in an environment as close as possible to its final application, the expansion board comes with a holder in which three different height spacers of 0.25, 0.5 and 1mm can be fitted. They are used to simulate the air gap between a cover glass and the sensor.

  • VL53L0X ranging and gesture detection module
  • 4-digit 7-segment display indicates target object range
  • Headers for two VL53L0X satellite modules
  • Arduino v3 compatible Shield headers for host MCU board connection
  • Holder for sensor cover glass and spacer

Note

The VL53L0X is a Class 1 Laser product.

Supplied with

3 x height spacers, sensor cover glass, 2 x VL53L0X satellite boards, 2 x satellite headers

Sensor Interfaces, STMicroelectronics

THÔNG SỐ KỸ THUẬT
Manufacturer STMicroelectronics
Manufacturer Part No. X-NUCLEO-53L0A1
Sensor Technology Gesture Sensor
Featured Device VL53L0X
Kit Classification Expansion Board

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
