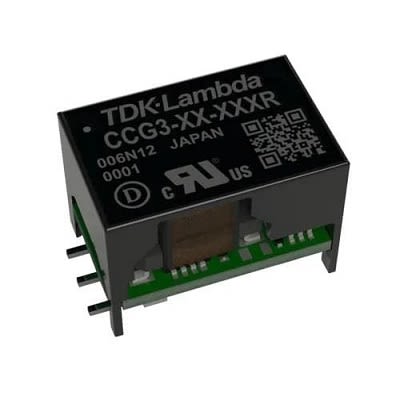

TDK-LAMBDACCG3-48-12DRCCG Isolated DC-DC Converter, 12V dc/, 18 → 76 V dc Input, 3W, Surface Mount
Input Voltage Nominal 48V dcInput Voltage Range 18 → 76 V dc✓ IsolatedĐiện áp cách ly 1.5kV dc
Liên hệ
TDK-Lambda space saving CCG3 series of isolated DC-DC converters operate from wide range. Single output models can be adjusted -5% to +10% by using the trim terminal. The CCG can operate in ambient temperatures of -40 to 100°C and have an input to output isolation of 1500 Vdc. Both through hole and surface mount packages are offered.
Output Voltage Tolerance - ±2 %
Switching Frequency - 400 kHz
Cross Regulation - Dual output only
Ripple & Noise - 200 mV
Temperature Coefficient - 0.02 %/°C
Conducted & Radiated EMI - EN55011/EN55032-A, FCC Class A, VCCI-A
