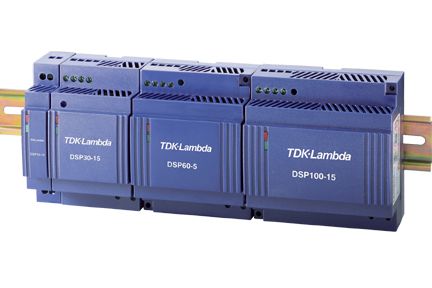

TDK-Lambda, DSP DIN Rail Power Supply, 24V dc Output Voltage, 1.3A Output Current [DSP-30-24]; 168-2955
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 90 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 1.3 A |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 91mm |
| Width | 53mm |
| Series | DSP |
| Standards Met | CE, EN 55022, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-6, UL 1310 Class 2, UL 508, UL 60950-1, UL 94 V-0 |
| Maximum Temperature | +71°C |
| Mounting Type | DIN Rail Mount |
| Load Regulation | 0.01 |
| Depth | 55.6mm |
| Output Voltage Adjustment Range | 24 → 28V |
| Ripple And Noise | 50mV |
| Minimum Temperature | -25°C |
