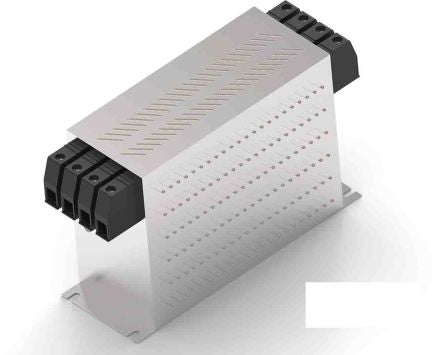

TE CONNECTIVITY120KEPS10BBSWKEP-BS 120A 520 V ac 50 → 60Hz, Chassis Mount Power Line Filter 3 Phase
Bộ lọc nguồn EMI 120A, 520V ac, 3
Dòng tối đa 120AĐiện áp tối đa 520V acSố pha 3Kiểu lắp Chassis MountKiểu đấu nối Terminal Block
Liên hệ
The TE Connectivity KEB series 3-phase general purpose EMI filter has single stage delta (3wire + ground )configuration. It has electrical ratings of 3-phase 520VAC voltage and 120A current. This power line filters are universal and cost-effective with good power attenuation. It is designed to be used in ideal applications include HVAC, rectifier and industrial control systems.
Operating frequency = 50/60Hz
Leakage current = 11mA
Superior performance
Chassis mounting
Operating temperature range = -25°C to +85ºC
