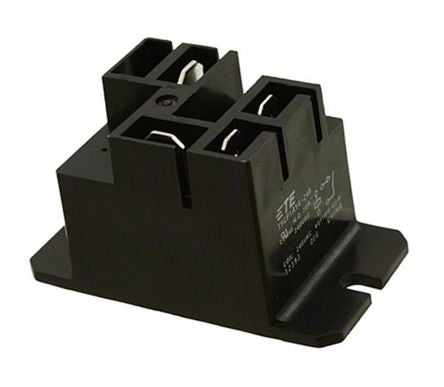

TE CONNECTIVITY1649341-2Flange Mount Non-Latching Relay, 240V ac Coil, 30A Switching Current, SPST

Ứng dụng Domestic AppliancesCoil Power 1.6WCoil Resistance 12kΩĐiện áp cuộn coil 240V ac
Mã nhà sản xuất
1649341-2
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

TE Connectivity T9C Series High Power PCB Relays

T9C series high power PCB relays with a dust protected flange mounted enclosure and a 1.6VA (cULus recognized) coil. These T9C series PCB mount power relays have 1 form A (NO) VDE approved and UL recognized contact configuration with a 20A current rating. Typical applications for these T9C PCB power relays include HVAC, power supplies, domestic appliances, measurement and controls

Dust proof flange mounting enclosure

1.6VA coil (cULus recognized)

Form A (NO) VDE approved and UL recognized contact configuration

Quick Connect terminations

THÔNG SỐ KỸ THUẬT
Manufacturer TE Connectivity
Manufacturer Part No. 1649341-2
Coil Voltage 240V ac
Contact Configuration SPST
Mounting Type Flange Mount
Switching Current 30A
Number of Poles 1
Series T9C
Terminal Type PCB Pin
Maximum Switching Voltage AC 250V
Length 50.29mm
Coil Resistance 12kΩ
Coil Power 1.6W
Height 27.94mm
Contact Material Silver Alloy
Life 30000 (Electrical) Operations, 5000000 (Mechanical) Operations
Standards Met CSA, cULus, VDE
Depth 27.43mm
Isolation Coil To Contact 2.5kV rms
Maximum Operating Temperature +70°C
Minimum Operating Temperature -40°C
Maximum Switching Power AC 5 kVA
Application Domestic Appliances, HVAC, Measurement & Controls, Power Supplies

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
