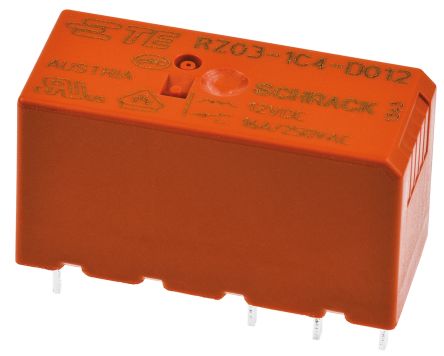

TE CONNECTIVITY2-1415899-2PCB Mount Non-Latching Relay, 12V dc Coil, 12A Switching Current, SPDT

Ứng dụng PowerCoil Power 400 mWCoil Resistance 360ΩĐiện áp cuộn coil 12V dc
Mã nhà sản xuất
2-1415899-2
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

TE Connectivity RZ Series PCB Power Relays

RZ Series PCB mounting power relays with a 400 mW DC coil and 5kV / 10mm reinforced insulation. These RZ Series PCB mounting power relays are flux tight and have silver nickel contacts.

12A versions of these RZ Series PCB mounting power relays have 3.5mm pinning

16A versions of these RZ Series PCB mounting power relays have 5 mm pinning

3.2 or 5 mm pinning

Dimensions: 29.00 x 12.70 x 15.70 mm

Meets the appliance industry requirements of IEC60335-1

Approvals

VDE and UL

Approvals

VDE and UL

THÔNG SỐ KỸ THUẬT
Manufacturer TE Connectivity
Manufacturer Part No. 2-1415899-2
Coil Voltage 12V dc
Contact Configuration SPDT
Mounting Type PCB Mount
Switching Current 12A
Series RZ
Terminal Type Through Hole
Maximum Switching Voltage AC 400V ac
Length 29mm
Coil Resistance 360Ω
Coil Power 400 mW
Life 10000000 (Mechanical) cycles, 30000 (Electrical) cycles
Contact Material Silver Alloy
Height 15.7mm
Depth 12.7mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Isolation Coil To Contact 5kV rms
Maximum Switching Power AC 3 kVA
Application Power

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
