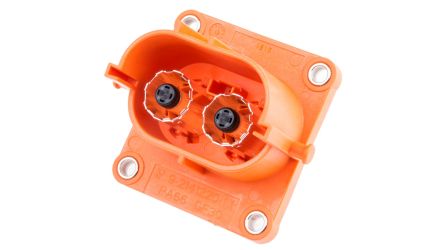

TE CONNECTIVITY2141227-1HVP800 Heavy Duty Power Connector, Straight

Connector Body Material Nylon 6.6 (Polyamide 6.6) / Glass Filled BodyDùng cho AMP HVP 800 Series Automotive ContactsĐực / cái PlugCấp bảo vệ IP IP6K9K
Mã nhà sản xuất
2141227-1
Thương hiệu
Quy cách đóng gói
Hộp 48 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The TE - Automotive touch-proof 2-3 position high current connector HVP800 and header are designed to meet WG 4.3.3, LV215-1 specifications, for a metric wire size range from 16mm² up to 50mm². The sealed connector system (optional with a 90deg or 180deg cable outlet) incorporates two or three (2-3pos) 8mm power contacts and an integrated High Voltage Interlock (HVIL) System.

Ambient Temperature ranges from -40 to 140°C

Insulation resistance at 1kVDC greater then 200MΩ

Four different keying or polarizing configurations

360° conductive EMI shields
