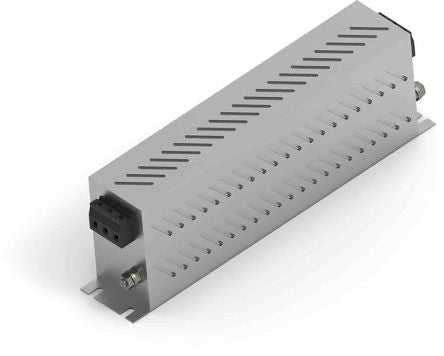

TE CONNECTIVITY30KEMS10ABSDKEM-BS 30A 440 V ac 50 → 60Hz, Chassis Mount Power Line Filter 3 Phase
Bộ lọc nguồn EMI 30A, 440V ac, 3
Dòng tối đa 30AĐiện áp tối đa 440V acSố pha 3Kiểu lắp Chassis MountKiểu đấu nối Terminal Block
Liên hệ
The TE Connectivity KEB series 3-phase general purpose EMI filter has single stage delta (3wire + ground )configuration. It has electrical ratings of 3-phase 440VAC voltage and 30A current. This power line filters are universal and cost-effective with good power attenuation. It is designed to be used in ideal applications include HVAC, rectifier and industrial control systems.
Operating frequency = 50/60Hz
Leakage current = 18mA
Bookshelf design
Chassis mounting
Operating temperature range = -25°C to +85ºC
