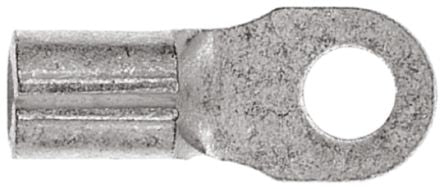

TE CONNECTIVITY320677Budget Series Uninsulated Crimp Ring Terminal, M2 (#2) Stud Size, 0.26mm² to 1.65mm² Wire Size

Đầu cos tròn M2 (#2), 1.65mm², 0.26mm²

Cỡ lỗ bắt vít M2 (#2)Dây lớn nhất (mm²) 1.65mm²Dây nhỏ nhất (mm²) 0.26mm²Cách điện UninsulatedVật liệu tiếp điểm Copper
Mã nhà sản xuất
320677
Thương hiệu
Quy cách đóng gói
Hộp 1000 cái
Mã kho
1615212
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

TE Connectivity Budget Style Ring Tongue Terminals

A range of closed barrel tin plated copper ring tongue terminals that accept a 26-22 AWG wire size and a wire/cable termination CMA size of 202-810 (0.1 to 0.41mm2). These budget style ring tongue terminals have a maximum operating temperature range of 170°C maximum.

THÔNG SỐ KỸ THUẬT
Series Budget
Insulation Uninsulated
Outer Ring Diameter 4.62mm
Inner Ring Diameter 2.36mm
Maximum Wire Size mm² 1.65mm²
Minimum Wire Size mm² 0.26mm²
Minimum Wire Size AWG 22AWG
Maximum Wire Size AWG 16AWG
Stud Size M2 (#2)
Contact Plating Tin
Contact Material Copper
Thickness 0.79mm
Overall Length 11.33mm
