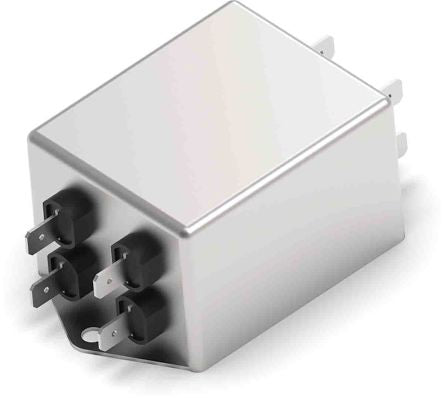

TE CONNECTIVITY6KESS1BFPWKES 6A 520 V ac 50 → 60Hz, Chassis Mount Power Line Filter, Quick Connect 3 Phase

Bộ lọc nguồn EMI 6A, 520V ac, 3

Dòng tối đa 6AĐiện áp tối đa 520V acSố pha 3Kiểu lắp Chassis MountKiểu đấu nối Quick Connect
Mã nhà sản xuất
6KESS1BFPW
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2094377
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The TE Connectivity KEB series 3-phase general purpose EMI filter has single stage delta (3wire + ground )configuration. It has electrical ratings of 3-phase 520VAC voltage and 6A current. This power line filters are universal and cost-effective with good power attenuation. It is designed to be used in ideal applications include HVAC, rectifier and industrial control systems.

Operating frequency = 50/60Hz

Leakage current = 3mA

Standard attenuation performance

Chassis mounting

Operating temperature range = -25°C to +85ºC

THÔNG SỐ KỸ THUẬT
Manufacturer TE Connectivity
Manufacturer Part No. 6KESS1BFPW
Maximum Current Rating 6A
Maximum Voltage Rating 520V ac
Mounting Type Chassis Mount
Termination Style Quick Connect
Number of Phases 3
Number of Stages Single Stage
Series KES
Operating Frequency 50/60Hz

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
