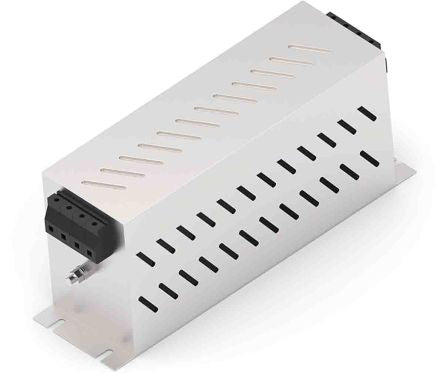

TE CONNECTIVITY7KEVD10BBSWKEV-BS 7A 520 V ac 50 → 60Hz, Chassis Mount Power Line Filter 3 Phase

Bộ lọc nguồn EMI 7A, 520V ac, 3

Dòng tối đa 7AĐiện áp tối đa 520V acSố pha 3Kiểu lắp Chassis MountKiểu đấu nối Terminal Block
Mã nhà sản xuất
7KEVD10BBSW
Thương hiệu
Quy cách đóng gói
Each
Mã kho
2094463
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

The TE Connectivity KEB series 3-phase general purpose EMI filter has single stage delta (3wire + ground )configuration. It has electrical ratings of 3-phase 520VAC voltage and 7A current. This power line filters are universal and cost-effective with good power attenuation. It is designed to be used in ideal applications include HVAC, rectifier and industrial control systems.

Operating frequency = 50/60Hz

Leakage current = 5mA

Standard attenuation performance

Chassis mounting

Operating temperature range = -25°C to +85ºC

THÔNG SỐ KỸ THUẬT
Manufacturer TE Connectivity
Manufacturer Part No. 7KEVD10BBSW
Maximum Current Rating 7A
Maximum Voltage Rating 520V ac
Mounting Type Chassis Mount
Termination Style Terminal Block
Number of Phases 3
Series KEV-BS
Operating Frequency 50 → 60 Hz
Leakage Current 5mA
Minimum Operating Temperature -25°C
Maximum Operating Temperature +85°C

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
