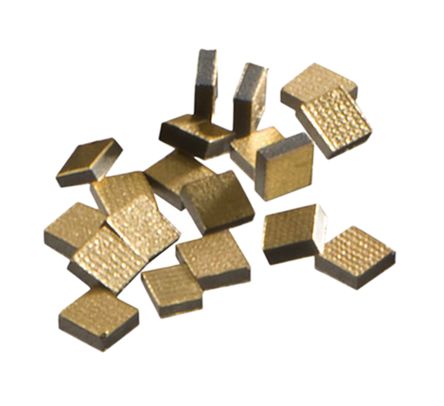

TE CONNECTIVITYGA10K3CG3Thermistor, NTC Type, 1.02 x 1.02 x 0.305mm

Ứng dụng Temperature Measurement and CompensationSai số ±5%
Mã nhà sản xuất
GA10K3CG3
Thương hiệu
Quy cách đóng gói
10 cái (băng liên tục)
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

TE Connectivity Gold Terminated Leadless Chip Thermistors

10K3CG gold leadless chip thermistors from TE Connectivity are a surface mount solution. These NTC thermistors feature a rapid time response, under 1 second in liquids. 10K3CG NTC thermistors feature square or rectangular configurations and have been designed with a uniform size that facilitates pick and place assembly.

Gold terminations

Supplied in ±5% and ±10% tolerance options

Surface mount

Wide temperature range between -40°C and +125°C

Product Application Information

Suitable applications for these NTC thermistors include Wavelength Division Multiplexing (WDM) for communications systems wireless applications, allowing for advanced frequency control. Other suitable uses include hybrid circuit temperature compensation and the thermal protection of sensitive circuits. 10K3CG NTC thermistors are ideal for localised temperature sensing and can also be used as thermopile sensors for infrared sensing and thermal radiation recognition.

THÔNG SỐ KỸ THUẬT
Manufacturer TE Connectivity
Manufacturer Part No. GA10K3CG3
Series 10K3CG
Temperature Coefficient Type NTC
Tolerance ±5%
Application Temperature Measurement and Compensation
Length 1.02mm
Depth 1.02mm
Height 0.31mm
Dimensions 1.02 x 1.02 x 0.305mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
