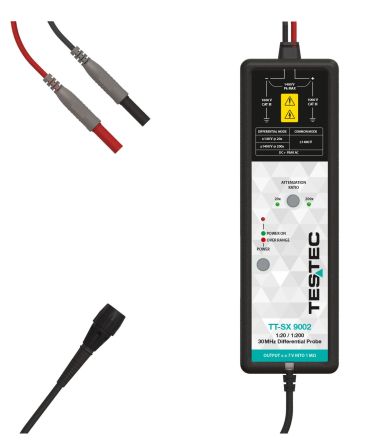

TESTECTT-SX 9002TT-SX 9000 Series TT-SX 9002 Oscilloscope Probe, Differential Type, 30MHz, 1:20, 1:200, BNC Connector

Product Details

TT-SX 9002 - 30MHz active differential probe - x20 / x200

The Testec TT-SX 9002 High-Voltage Differential probes allow conventional earth-grounded oscilloscopes to be used for floating signal measurements - up to1400V differential or common mode voltage (x200). This model offers user selectable attenuation setting (x20 & x200), making the probe highly versatile and usable for a broad range of applications including power supply measurements and motor controls. This probe is compatible with any oscilloscope with a 1 MΩ BNC female input

and feature up to 30 MHz of bandwidth. The probe can be powered by an oscilloscope USB port (USB Power Cord USB-A to USB-C included), internal batteries (4 x AA batteries), or USB power adapter, both not included in the scope of delivery. The probe is shipped standard with a factory calibration certificate.

30 MHz bandwidth

Up to 1400V differential (DC + pk AC)

1,000V CAT III rated

cTUVus safety certified

Voltage over range indicator

Switchable attenuation ranges

Multiple power options - batteries, oscilloscope, or mains

Insulated BNC interface

Protective rubber boot

Applications

power supply measurments

motor controls

product design applications

automotive testing

Supplied with/Kit contains:

2 x hook clips (red and black)

1 x USB Power Cord (1 m) - USB-A to USB-C

1 x calibration certificate

What other Probes are available in this Testec range?

TT-SX 9001

Approvals/Certification

EN61010-031:2015 Ed. 2.0

EN61010-1:2010/AMD:2016

2014/35/EU

EN61326-2013

2014/30/EU

cTUVus

CE

UKCA

RoHS 2

China RoHS2
