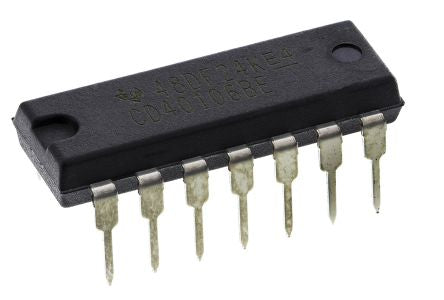

TEXAS INSTRUMENTSCD40106BECD40106BE, Hex Schmitt Trigger CMOS Inverter, 3 → 18 V, 14-Pin PDIP

Input Type Schmitt TriggerLogic Family 4000Logic Function InverterMaximum High Level Output Current -4.2mA
Mã nhà sản xuất
CD40106BE
Thương hiệu
Quy cách đóng gói
Ống 25 cái
Mã kho
526533
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

4000 Series Inverters & Buffers, Texas Instruments

Texas Instruments range of Inverters and Buffers from the 4000 Series CMOS Logic Family

4000 CMOS Logic Family, Texas Instruments

CMOS Family devices

Wide operating voltage range: 3 to 18V

THÔNG SỐ KỸ THUẬT
Manufacturer Texas Instruments
Manufacturer Part No. CD40106BE
Logic Function Inverter
Input Type Schmitt Trigger
Number of Elements per Chip 6
Schmitt Trigger Input Yes
Maximum Propagation Delay Time @ Maximum CL 120 ns @ 15 V, 140 ns @ 10 V, 280 ns @ 5 V
Maximum High Level Output Current -4.2mA
Maximum Low Level Output Current 4.2mA
Mounting Type Through Hole
Package Type PDIP
Pin Count 14
Logic Family 4000
Dimensions 19.3 x 6.35 x 4.57mm
Height 4.57mm
Maximum Operating Supply Voltage 18V
Minimum Operating Supply Voltage 3V
Length 19.3mm
Propagation Delay Test Condition 50pF
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Width 6.35mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
