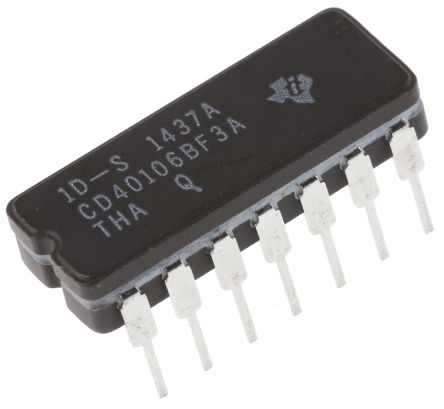

Texas Instruments CD40106BF3A, Hex Schmitt Trigger Inverter, 3 → 18 V, 14-Pin CDIP [CD40106BF3A]; 796-7944
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Input Type | Schmitt Trigger |
| Output Type | CMOS |
| Number of Elements per Chip | 6 |
| Schmitt Trigger Input | Yes |
| Maximum Propagation Delay Time @ Maximum CL | 280 ns @ 50 pF |
| Maximum High Level Output Current | -4.2mA |
| Maximum Low Level Output Current | 4.2mA |
| Mounting Type | Through Hole |
| Package Type | CDIP |
| Pin Count | 14 |
| Logic Family | 4000 |
| Dimensions | 19.94 x 7.62 x 3.56mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Supply Voltage | 18 V |
| Width | 7.62mm |
| Minimum Operating Supply Voltage | 3 V |
| Height | 3.56mm |
| Maximum Operating Temperature | +125 °C |
| Length | 19.94mm |
| Propagation Delay Test Condition | 50pF |
