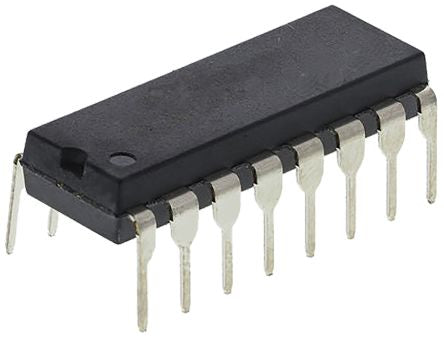

AND/OR Gate 4-Element 2-IN [CD4019BE]; 145-0010
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | AND/OR |
| Mounting Type | Through Hole |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | PDIP |
| Pin Count | 16 |
| Logic Family | 4000 |
| Maximum Operating Supply Voltage | 18 V |
| Maximum High Level Output Current | -4.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 100 ns @ 15 V, 120 ns @ 10 V, 300 ns @ 5 V |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Low Level Output Current | 4.2mA |
| Width | 6.35mm |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Minimum Operating Temperature | -55 °C |
| Length | 19.3mm |
| Propagation Delay Test Condition | 50pF |
| Height | 4.57mm |
| Maximum Operating Temperature | +125 °C |
