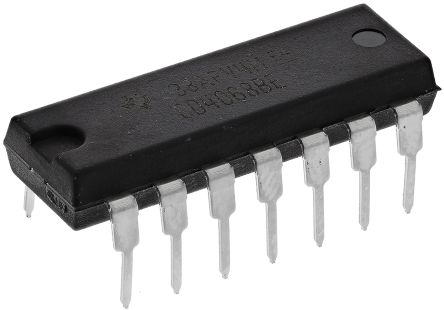

TEXAS INSTRUMENTSCD4068BEAND/NAND Gate 1-Element 8-IN

Logic Family 4000Logic Function AND/NANDMaximum High Level Output Current -4.2mAMaximum Low Level Output Current 4.2mA
Mã nhà sản xuất
CD4068BE
Thương hiệu
Quy cách đóng gói
Ống 25 cái
Mã kho
1450197
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com
THÔNG SỐ KỸ THUẬT
Logic Function AND/NAND
Mounting Type Through Hole
Number of Elements 1
Number of Inputs per Gate 8
Schmitt Trigger Input No
Package Type PDIP
Pin Count 14
Logic Family 4000
Maximum Operating Supply Voltage 18 V
Maximum High Level Output Current -4.2mA
Maximum Propagation Delay Time @ Maximum CL 110 ns @ 15 V, 150 ns @ 10 V, 300 ns @ 5 V
Minimum Operating Supply Voltage 3 V
Maximum Low Level Output Current 4.2mA
Dimensions 19.3 x 6.35 x 4.57mm
Width 6.35mm
Length 19.3mm
Minimum Operating Temperature -55 °C
Height 4.57mm
Propagation Delay Test Condition 50pF
Maximum Operating Temperature +125 °C
