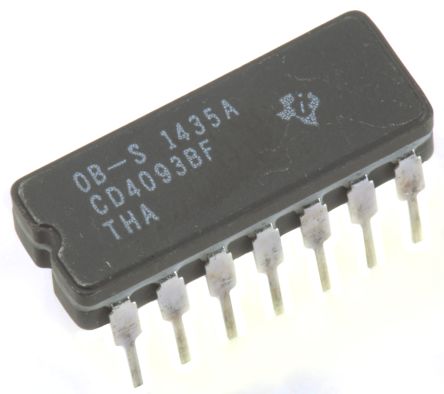

Texas Instruments CD4093BF, Quad 2-Input NAND Schmitt Trigger Logic Gate, 3 → 18 V, 14-Pin CDIP [CD4093BF]; 796-7950
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | NAND |
| Mounting Type | Through Hole |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | Yes |
| Package Type | CDIP |
| Pin Count | 14 |
| Logic Family | 4000 |
| Input Type | CMOS |
| Maximum Operating Supply Voltage | 18 V |
| Maximum High Level Output Current | -4.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 380 ns @ 50 pF |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Low Level Output Current | 4.2mA |
| Width | 7.62mm |
| Minimum Operating Temperature | -55 °C |
| Length | 19.94mm |
| Dimensions | 19.94 x 7.62 x 3.56mm |
| Maximum Operating Temperature | +125 °C |
| Height | 3.56mm |
| Propagation Delay Test Condition | 50pF |
| Output Type | CMOS |
