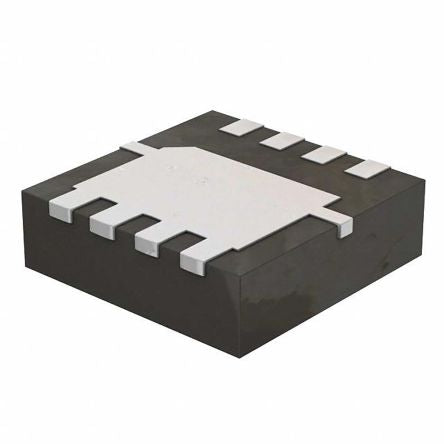

TEXAS INSTRUMENTSCSD19534Q5AN-Channel MOSFET, 50 A, 100 V, 8-Pin VSONP Texas Instruments CSD19534Q5A

Find similar products by selecting one or more attributes.

Select all

AttributeValue

BrandTexas Instruments

Product TypeMOSFET

Channel TypeType N

Maximum Continuous Drain Current Id50A

Maximum Drain Source Voltage Vds100V

SeriesNexFET

Package TypeVSONP

Mount TypeSurface

Pin Count8

Maximum Drain Source Resistance Rds15.1mΩ

Channel ModeEnhancement

Typical Gate Charge Qg @ Vgs17nC

Minimum Operating Temperature-50°C

Forward Voltage Vf1V

Maximum Gate Source Voltage Vgs20 V

Maximum Power Dissipation Pd63W

Maximum Operating Temperature150°C

Length5.9mm

Height0.9mm

Width4.8 mm

Standards/ApprovalsNo
