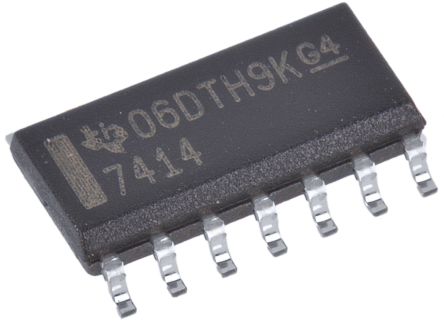

Texas Instruments SN7414D Inverter [SN7414D]; 145-6572
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | Inverter |
| Input Type | Schmitt Trigger |
| Number of Elements per Chip | 6 |
| Schmitt Trigger Input | Yes |
| Maximum Propagation Delay Time @ Maximum CL | 22 ns @ 5 V |
| Maximum High Level Output Current | -0.8mA |
| Maximum Low Level Output Current | 16mA |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | 74 |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Propagation Delay Test Condition | 15pF |
| Length | 8.65mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Width | 3.91mm |
| Minimum Operating Supply Voltage | 4.75 V |
| Height | 1.58mm |
