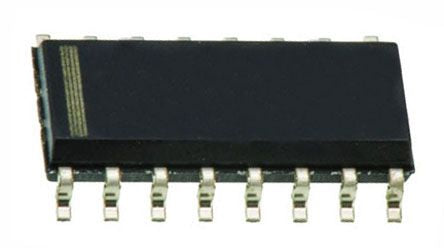

Texas Instruments TL494CDR, Dual PWM Voltage Mode Controller, 200 mA, 300 kHz 16-Pin, SOIC [TL494CDR]; 661-6866
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of PWM Outputs | 2 |
| Control Method | Voltage |
| Topology | Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull |
| Rise Time | 100ns |
| Fall Time | 40ns |
| Maximum Switching Frequency | 300 kHz |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum Duty Cycle | 0.45 |
| Output Current | 200 mA |
| Output Voltage | 40 V |
| Typical Operating Supply Voltage | 7 → 40 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Height | 1.58mm |
| Dimensions | 9.9 x 3.91 x 1.58mm |
| Width | 3.91mm |
| Length | 9.9mm |
