TEXAS INSTRUMENTSTPS650250RHBTTPS650250RHBT, 6-Channel, Step Down Power Management IC, Adjustable, 1 → 3.3 V, 800mA 32-Pin

Converter Type Step DownLine Regulation 0 %/VLoad Regulation 0.25 %/AMaximum Input Voltage 6.5 V
Mã nhà sản xuất
TPS650250RHBT
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
7840410
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

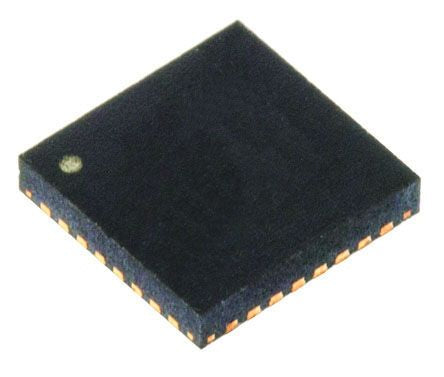

Texas Instruments TPS650250RHBT, 6-Channel, Step Down Power Management IC, Adjustable, 1 → 3.3 V, 800mA 32-Pin [TPS650250RHBT]

THÔNG SỐ KỸ THUẬT
Manufacturer TEXAS INSTRUMENTS
Manufacturer Part No. TPS650250RHBT
Minimum Output Voltage 1 V
Maximum Output Voltage 3.3 V
Minimum Input Voltage 1.5 V
Maximum Input Voltage 6.5 V
Maximum Output Current 800mA
Converter Type Step Down
Number of Outputs 6
Output Type Adjustable
Mounting Type Surface Mount
Package Type QFN
Pin Count 32
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Dimensions 5.15 x 5.15 x 0.95mm
Width 5.15mm
Height 0.95mm
Length 5.15mm
Switching Regulator Yes
Maximum Switching Frequency 2.25 MHz
Load Regulation 0.25 %/A
Line Regulation 0 %/V
