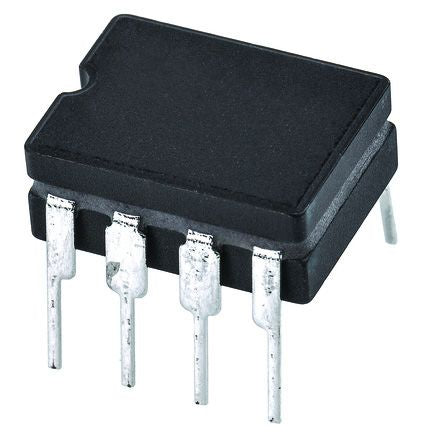

TEXAS INSTRUMENTSUC1845JUC1845J, PWM Current Mode Controller, 1 A, 500 kHz, 2.5 V, 8-Pin CDIP

Control Method CurrentFall Time 150nsMaximum Duty Cycle 50%Maximum Operating Supply Voltage 2.5V
Mã nhà sản xuất
UC1845J
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
7968477
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

PWM Controllers 500kHz, Texas Instruments

From Texas Instruments, a range of Pulse Width Modulation controllers and associated devices to suit a variety of applications and specifications.

PWM (Pulse Width Modulation) Controllers, Texas Instruments

THÔNG SỐ KỸ THUẬT
Manufacturer Texas Instruments
Manufacturer Part No. UC1845J
Maximum Switching Frequency 500 kHz
Output Voltage 5.05V
Output Current 1A
Control Method Current
Number of Outputs 1
Mounting Type Through Hole
Fall Time 150ns
Package Type CDIP
Rise Time 150ns
Pin Count 8
Topology Boost, Flyback, Forward
Dimensions 10.16 x 7.11 x 4.57mm
Maximum Duty Cycle 50%
Length 10.16mm
PWM Controller Type Current Mode
Width 7.11mm
Height 4.57mm
Maximum Operating Supply Voltage 2.5V
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
