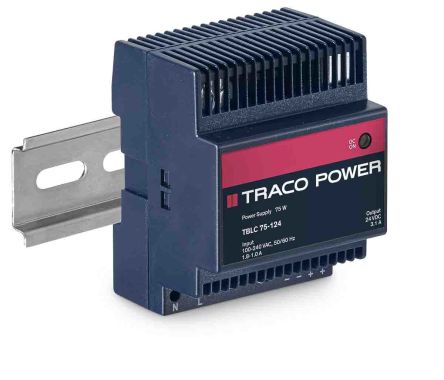

TRACOPOWERTBLC 75-124TBLC DIN Rail Power Supply, 24V dc Output Voltage, 3.1A Output Current

AC or DC Input Voltage AcAC or DC Output Voltage DcElectrical Phase 1Input Voltage 85 → 264V ac
Mã nhà sản xuất
TBLC 75-124
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
1258552
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Traco Power DIN Rail Power Supply, 1.89K/W Thermal Impedance, 3000V AC Isolation Test Voltage - TBLC 75 Series - TBLC 75-124

Are you looking for an easy way to boot up your control cabinet? Make room for this DIN rail power supply from Traco Power. It takes an input voltage between 85 and 264V AC and generates a steady 24V DC output to bring multiple small devices to life. As it has a high 75W power rating, it supports large-scale systems like industrial lights with ease. With an efficiency of 89% and a low standby current consumption of just 500mW, this unit is more than ready to meet ECO-Standard requirements.

Features & Benefits

  • Screw terminals for swift and secure set-up
  • Hitch-free performance in operating temperatures ranging from -25°C to +70°C
  • Mounts directly on standard 35mm DIN rails
  • Low-profile dimensions of 72 (W) x 59.5 (L) x 89.5 (D) take up minimal space

Applications

  • Schools and universities
  • Retail parks
  • Wind power generation

What class of devices can I use with this power supply?

This component is designed for use with class II devices like motors, solenoids or lighting systems that don't need a safe earth connection.

How much noise does this unit produce?

It emits a low ripple and noise of 50mVp-p, generating minimal EMI and RFI to keep sensitive systems running smoothly.

THÔNG SỐ KỸ THUẬT
AC or DC Input Voltage Ac
AC or DC Output Voltage Dc
Input Voltage 85 → 264V ac
Output Voltage 24 V dc
Output Current 3.1 A
Power Rating 75W
Number of Outputs 1
Electrical Phase 1
Height 89.5mm
Width 59.5mm
Special Features Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes
Mounting Type DIN Rail Mount
Ripple And Noise 50mV Pk-Pk
Maximum Temperature +70°C
Output Voltage Adjustment Range 24 → 28V
Depth 59.5mm
Series TBLC
Minimum Temperature -25°C
Standards Met ErP Compliant
