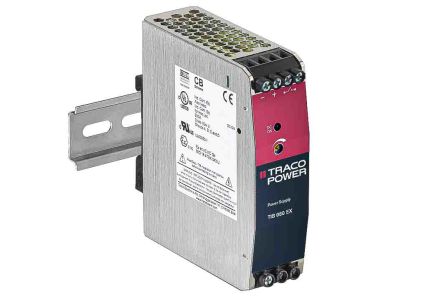

TRACOPOWER, TIB 080 DIN Rail Panel Mount Power Supply, 12V dc Output Voltage, 6.7A Output Current [TIB 080-112EX]; 184-8531
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 12 V dc |
| Output Current | 6.7 A |
| Power Rating | 80W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Power Supply |
| Height | 114.2mm |
| Width | 32mm |
| Minimum Temperature | -40°C |
| Depth | 98.6mm |
| Efficiency | 0.88 |
| Ripple And Noise | 100mV Pk-Pk |
| MTBF | >1950000h |
| Mounting Type | DIN Rail Mount |
| Hazardous Area Certification | ATEX |
| Series | TIB 080 |
| Standards Met | CE Certified, CSA C22.2 No 60950-1-03, CULus Recognized, Division 2, EN 60079-0, EN 60079-15, EN 60079-7, EX II3G Ex ec nC IIC GC Class I, IEC/EN 60950-1, UL 508, UL 60950-1 |
| Output Voltage Adjustment Range | 11.8 → 15V |
| Load Regulation | 0.005 |
| Special Features | Alternative Side-Mounting for Flat Panels, Back Power Immunity, High Power Factor by Active Power Correction, Slim Profile for DIN-Rail Mounting |
| Maximum Temperature | +70°C |
