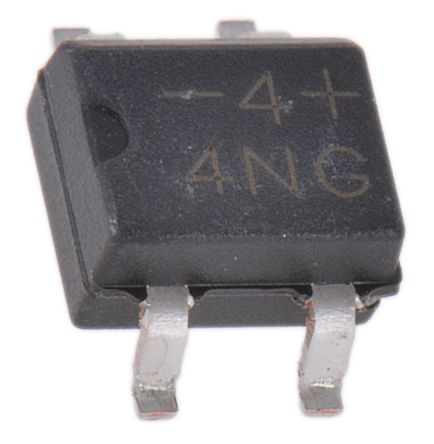

Vishay MB4S-E3/45 6290316

VISHAYMB4S-E3/45MB4S-E3/45, Bridge Rectifier, 800mA 400V, 4-Pin TO-269AA

Bridge Type Single PhaseConfiguration SingleKiểu lắp Surface MountPeak Average Forward Current 800mA
Mã nhà sản xuất
MB4S-E3/45
Thương hiệu
VISHAY
Quy cách đóng gói
Gói 5 cái
Mã kho
6290316
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com 📄 Datasheet (PDF)

Bridge Rectifiers for PCB Surface Mount, MBxS Series, Vishay Semiconductor

Space saving SMT package

Applicable for automated placement

Ideal for Printed Circuit Board (PCB) reflow soldering

Approvals

UL, E54214

Bridge Rectifiers - Vishay Semiconductor

The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

THÔNG SỐ KỸ THUẬT
Manufacturer Vishay
Manufacturer Part No. MB4S-E3/45
Bridge Type Single Phase
Peak Average Forward Current 800mA
Peak Reverse Repetitive Voltage 400V
Mounting Type Surface Mount
Package Type TO-269AA
Pin Count 4
Configuration Single
Peak Non-Repetitive Forward Surge Current 35A
Maximum Operating Temperature +150°C
Minimum Operating Temperature -55°C
Peak Forward Voltage 1V
Peak Reverse Current 5 µA
Dimensions 4.95 x 4.1 x 2.7mm
Length 4.95mm
Height 2.7mm
Width 4.1mm

Giá: Liên hệ – gửi mã và số lượng về CV@chanhvinh.com để nhận báo giá nhanh.
