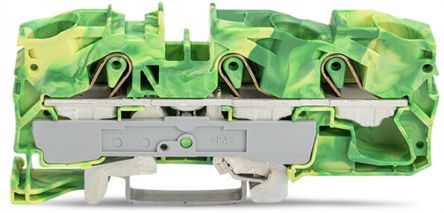

WAGO2016-13072016-1307 TOPJOB S, 2016 Series Green/Yellow, 16mm², Single-Level, Push-In Cage Clamp Termination, ATEX, IECEx

Conductor Area CSA 16mm²No. of Levels 2No. of Positions 3WaysRated Current 76A
Mã nhà sản xuất
2016-1307
Thương hiệu
Quy cách đóng gói
Gói 20 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

TOPJOB®S series V/J 3-conductor 16 mm² terminal blocks

Green / yellow terminal blocks for TS 35 rail, with CAGE CLAMP®S technology, and 30% smaller than standard terminal blocks.

Direct plug-in of rigid and flexible conductors with end tips, no tools required.

Simple and quick bridging and test system.

Easy and quick marking / labelling, using click-on markers on the central strip of the terminal block.

A grey end / intermediary plate, 1 mm thick, is available separately.

The WAGO 3-conductor ground terminal block and nominal cross section of 16 mm², suitable for EX e II applications.

3-conductor ground terminal block

Nominal cross section of 16 mm²

Side and center marking

For din-rail 35 x 15 and 35 x 7.5

Push-in cage clamp

Green-yellow color
