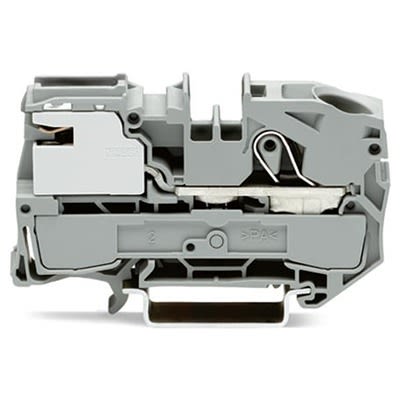

WAGO2016-71112016-7111 TOPJOB S Series Grey, 16mm², 1-Level, Push In Termination

The WAGO Terminal block is a one conductor power distribution disconnect terminal block. This terminal block provides class III overvoltage category according to IEC EN 60947 7 1 standard. This terminal block has polyamide insulation material with 2.1773 W power loss per pole. This terminal block operates on 250 V nominal voltage, rated 4 kV surge voltage, 72 A rated current and maximum 80 A current at conductor cross section mm².

RoHS compliant

0.413 MJ fire load

DIN 35 rail mounting

V0 flammability class per UL94

Push in cage clamp connection technology
