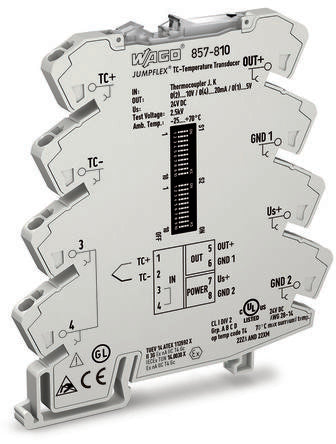

WAGO857-810857 Series Signal Conditioner, Current, Voltage Output

Additional functions inputs / outputs / power supply galvanic insulation / temperature compensation of thermocouple cold endsBody dimensions 6x94x97.8mmConform to the norm EN 61000-6-2 EN 61000-6-4EAN code 4045454470135
Mã nhà sản xuất
857-810
Thương hiệu
Quy cách đóng gói
1 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

The WAGO temperature signal conditioner records signals from thermocouples (type J, K) and converts the temperature signal into a standard analogue signal at the output. It has clipping capability for analogue signal limitation to output end values. It ha

Cold junction compensation (On/Off)

Calibrated measurement range switching

Detects a sensor wire break

Detects measurement range underflow/overflow
