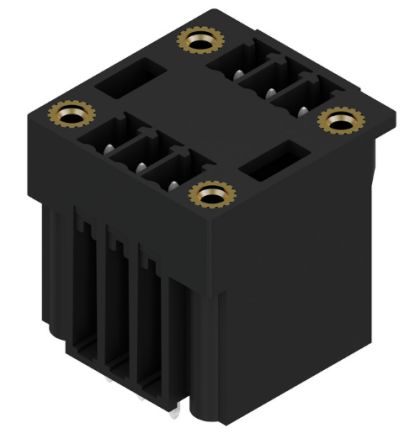

WEIDMÜLLER1031470000Weidmuller, SCD-THR Male PCB Header, 3.81mm Pitch, 6 Way, 2 Row

Block Orientation Through Hole VerticalĐực / cái HeaderNo. of Positions 6WaysPitch Spacing 3.81mm
Mã nhà sản xuất
1031470000
Thương hiệu
Quy cách đóng gói
Hộp 50 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Weidmuller SCD-THR Series PCB Header, 6 Contacts, 3.81mm Pitch - 1031470000

This PCB header is designed for efficient connections in electronic applications. It features a compact dual-row layout with 6 pins and a 3.81mm pitch, enabling users to integrate multiple interfaces onto a single surface. Ideal for mounting onto PCBs, this product provides a reliable solution for high-performance connectivity.

Features & Benefits

  • High-temperature resistance suitable for reflow soldering
  • Compact design enables dual functionality on a single surface
  • Flush connections ensure seamless access on the front board
  • Labelling space provided for easy identification and coding
  • Complies with IEC and UL standards for robust performance
  • Packaged in cardboard box for secure storage and transport

Applications

  • Ideal for use in automation control panels
  • Suitable for electronics assemblies requiring compact connections
  • Used for mechanical devices needing reliable PCB mounting
  • Recommended for electrical systems demanding dual-interface solutions

What are the electrical specifications regarding current and voltage ratings?

It can handle a maximum current of 17.5A at 20°C and a surge voltage rating of 320V, making it suitable for a variety of electronic applications.

How does the design facilitate soldering during manufacturing?

The design includes a THT/THR solder connection, allowing the header to be easily integrated into PCB assembly processes, ensuring a stable connection and robustness.

What materials are used in the construction of this product?

It features a copper alloy for the contacts and LCP GF insulation material, ensuring durability and resistance against environmental factors.

What is the recommended tightening torque for secure mounting?

The recommended tightening torque for this connector is between 0.1 Nm and 0.15 Nm, ensuring a secure fit on the PCB without damaging components.
