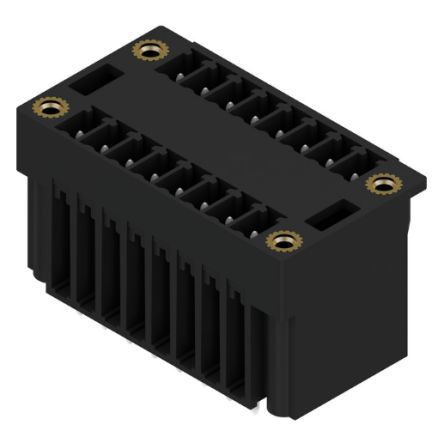

WEIDMÜLLER1031540000Weidmuller, SCD-THR Male PCB Header, 3.81mm Pitch, 16 Way, 2 Row

Block Orientation Through Hole VerticalĐực / cái HeaderNo. of Positions 16WaysPitch Spacing 3.81mm
Mã nhà sản xuất
1031540000
Thương hiệu
Quy cách đóng gói
Hộp 50 cái
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Weidmuller SCD-THR Series PCB Header, 16 Contacts, 3.81mm Pitch - 1031540000

This PCB header is an essential component designed for efficient electronic connections. With a robust dual-row configuration, it offers 16 contacts, featuring a 3.81mm pitch for seamless integration into circuit boards. The male PCB header is constructed for reliable mounting on printed circuit boards, ensuring optimal performance in various applications.

Features & Benefits

  • Designed for high-temperature resistance during reflow soldering
  • Allows dual interfaces on a single surface for efficient workflows
  • Flush connections enable easier accessibility and tidy layouts
  • Offers space for labelling and coding for enhanced identification
  • Compatible with standard connector layouts for versatile requirements

Applications

  • Ideal for electronic equipment requiring efficient PCB connectivity
  • Used for automation systems for reliable signal transmission
  • Suitable for electrical and mechanical installations in harsh environments
  • Recommended for connection point in industrial control systems
  • Used for consumer electronics for functional assembly

What are the environmental tolerances of this connector in various conditions?

The connector is rated for a storage temperature range of -40 to 70 °C and an operating temperature between -50 and 120 °C, ensuring functionality across diverse environments.

How does this header facilitate ease of assembly during PCB design?

With its flush design and standard 3.81mm pitch, the header simplifies the PCB layout process, allowing for effective use of space and streamlined assembly.

What certifications does this product hold to assure compliance with industry standards?

It is RoHS compliant, ensuring that it adheres to environmental regulations, as well as meeting IEC standards for safety and performance.

What considerations should be made regarding torque during installation?

For secure mounting, a tightening torque of 0.1 to 0.15 Nm is recommended, which ensures a reliable connection without damaging the component.

Can this header be used for applications that require coding and labelling?

Yes, the design includes provisions for labelling and coding, making it suitable for applications where proper identification is critical.
