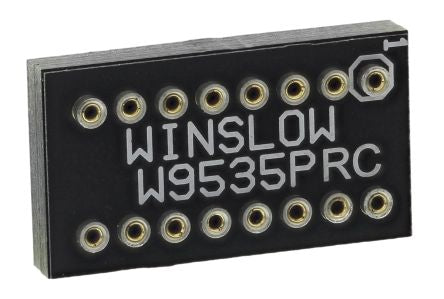

WINSLOWW9535PRCStraight SMT 1.27 mm, 7.62 mm Pitch IC Socket Adapter, 16 Pin Female DIP to 16 Pin Male SOJ/SOP

Hướng thân StraightVật liệu tiếp điểm Beryllium CopperMạ tiếp điểm Tin over NickelEnd 1 Gender Female
Mã nhà sản xuất
W9535PRC
Thương hiệu
Quy cách đóng gói
1 cái
Mã kho
2406602
Liên hệ
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

DIP to SOIC Sockets

Two piece 'Adaptics' that convert dual in line packages to small outline ICs format. The top is detachable from the base by way of socket contacts, allowing the two parts to be plugged and unplugged and making the surface mounting of the base much easier.

PCB: Epoxy Fibreglass FR4

IC Sockets-Package Adaptics DIP

A range of 'Adaptics' which allow the conversion between one package style to another. Development costs may be reduced by avoiding the need to redesign boards for alternative packages.

THÔNG SỐ KỸ THUẬT
Pitch 1.27 mm, 7.62 mm
End 1 16 Pin Female DIP
End 2 16 Pin Male SOJ/SOP
End 1 Number of Contacts 16
End 2 Number of Contacts 16
End 1 Type DIP
End 2 Type SOJ/SOP
End 1 Gender Female
End 2 Gender Male
Mounting Type Surface Mount
Body Orientation Straight
Contact Material Beryllium Copper
Contact Plating Tin over Nickel
Housing Material FR4
